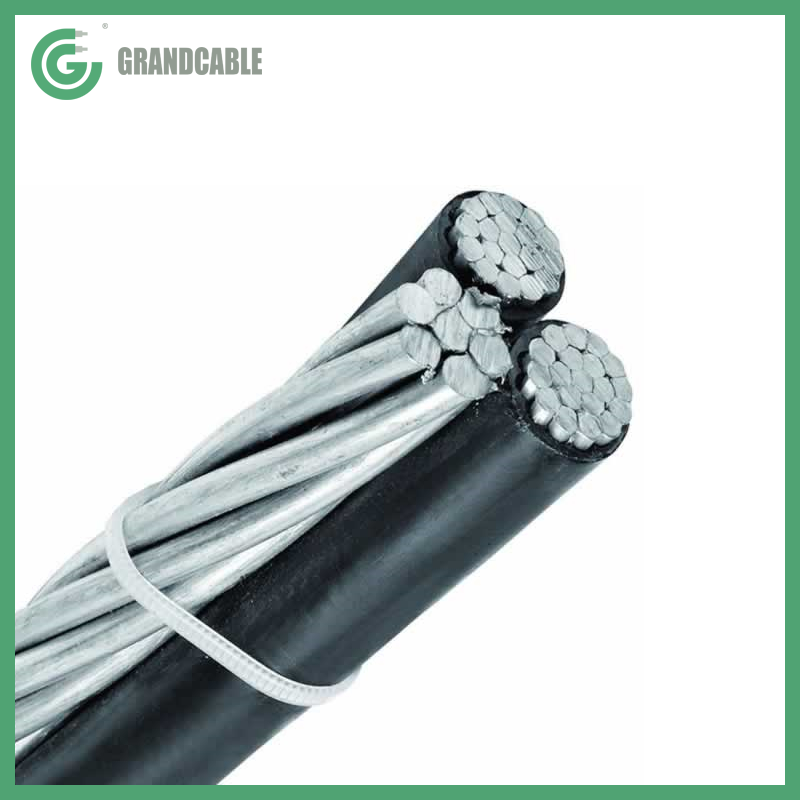

2 AWG AAAC # 2 TRIPLEX  CABLE, 7 STRAND , NEUTRAL.ICEA S-76-474

Concentric strand or compressed 1350-H19 conductor, polyethylene or cross-linked polyethylene insulation, concentric strand AAC, ACSR, or 6201 alloy neutral messenger for secondary and overhead service drop applications.
  • Service Drop Cable

  • Grand Cable

Availability:

Application
To supply 120 volt aerial service for temporary service at construction sites, outdoor or street lighting. For service at 600 volts or lower at a conductor temperature of 75°C maximum.


Applicable Standard

ASTM B 230

ASTM B 231

ASTM B 232

ASTM B 233

ASTM B 399

ICEA S-76-474


Construction
Concentric strand or compressed 1350-H19 conductor, polyethylene or cross-linked polyethylene insulation, concentric strand AAC, ACSR, or 6201 alloy neutral messenger.


Technical Data

Code Name Phase Core Neutral Bare Core Outer Diameter Cable Weight
Size Number of Wires Conductor Diameter Insulation Thickness Size Number of Wires Conductor Diameter mm kg/km
cmils/AWG mm mm cmils/AWG mm
AAC
HALOTIS 6 1 4.11 1.14 6 7 4.55 12.50 142.34
PIKE 6 7 4.29 0.76 6 7 4.55 11.60 128.88
PATELLA 6 7 4.29 1.14 6 7 4.55 12.70 143.63
ALBUS 6 1 4.11 1.52 6 7 4.55 13.60 158.46
FUSUS 4 1 5.19 1.14 4 7 5.88 15.00 214.57
OYSTER 4 7 5.41 1.14 4 7 5.88 15.30 216.14
ARGO 4 7 5.41 1.52 4 7 5.88 16.40 235.36
CLAM 2 7 6.81 1.14 2 7 7.41 18.40 321.87
THIA 2 7 6.81 1.52 2 7 7.41 19.50 344.42
MUSSEL 2 7 6.81 1.14 2 7 7.41 18.40 321.87
PYRULA 1 7 7.59 1.52 1 7 8.34 21.30 421.10
HYAS 1 19 7.59 1.52 1 7 8.34 21.30 421.10
MUREX 1/0 7 8.53 1.52 1/0 7 9.36 23.40 503.25
PURPURA 1/0 19 8.53 1.52 1/0 7 9.36 23.40 503.25
NASA 2/0 7 9.55 1.52 2/0 7 10.50 25.70 633.48
TROPHON 2/0 19 9.55 1.52 2/0 7 10.50 25.70 633.48
QUAHOG 3/0 7 10.7 2.03 3/0 7 11.79 29.70 832.41
IONE 3/0 19 10.7 2.03 3/0 7 11.79 29.70 832.41
MELITA 3/0 19 10.7 1.52 3/0 19 11.79 28.30 786.86
COQUINA 4/0 7 12.1 1.52 4/0 7 13.26 31.30 974.26
TUSK 4/0 7 12.1 2.03 4/0 7 13.26 32.80 1024.29
APUS 4/0 19 12.1 2.03 4/0 7 13.26 32.80 1024.29
PORTUNUS 4/0 19 12.1 1.52 4/0 19 13.26 31.30 974.26
CHITON 266.8 19 13.6 2.03 266.8 19 15.05 36.30 1211.92
NANNYNOSE 336.4 19 15.3 2.03 336.4 19 16.90 40.00 1571.77
AAAC
HOMARUS 6 1 4.11 1.14 6 7 5.04 12.80 148.74
MINEX 6 1 4.11 1.14 6 7 5.04 12.80 148.74
CABERA 6 7 4.29 1.14 6 7 5.04 13.10 150.03
HIPPA 6 7 4.29 1.14 6 7 5.04 13.10 150.03
ARTEMIA 4 1 5.19 1.14 6 7 5.04 14.40 199.27
MAIRA 4 7 5.41 1.14 6 7 5.04 14.70 200.84
CRAB 4 7 5.41 1.14 6 7 5.04 14.70 200.84
LUIDIA 4 1 5.19 1.14 6 7 5.04 14.40 199.27
PRAWN 4 1 5.19 1.14 4 7 6.36 15.30 224.27
METALIA 4 7 5.41 1.14 4 7 6.36 15.70 225.84
BARNACLES 4 7 5.41 1.14 4 7 6.36 15.70 225.84
SOLASTER 2 7 6.81 1.14 4 7 6.36 17.70 297.17
PAGARUS 2 7 6.81 1.52 4 7 6.36 18.80 319.72
SHRIMP 2 7 6.81 1.14 2 7 8.02 18.90 337.17
LOBSTER 2 7 6.81 1.52 2 7 8.02 20.00 359.72
ENCOPE 1 19 7.59 1.52 2 7 8.02 21.10 412.30
SANDERAB 1/0 7 8.53 1.52 2 7 8.02 22.40 463.75
ECHINUS 1/0 19 8.53 1.52 2 7 8.02 22.40 463.75
GAMMARUS 1/0 7 8.53 1.52 1/0 7 10.11 23.90 527.75
LEDA 1/0 19 8.53 1.52 1/0 7 10.11 23.90 527.75
CRAYFISH 2/0 7 9.55 1.52 2 7 8.02 23.90 555.58
SIPHO 2/0 19 9.55 1.52 2 7 8.02 23.90 555.58
DUNGENESE 2/0 7 9.55 1.52 2/0 7 11.35 26.30 664.58
CYCLOPS 2/0 7 9.55 1.52 2/0 7 11.35 26.30 664.58
SLUG 3/0 7 10.7 1.52 1/0 7 10.11 27.10 724.46
FULGUR 3/0 19 10.7 1.52 1/0 7 10.11 27.10 724.46
BALANUS 3/0 19 10.7 2.03 1/0 7 10.11 28.50 770.01
STONECRAB 3/0 7 10.7 1.52 3/0 7 12.75 29.00 825.46
FLUSTRA 3/0 7 10.7 1.52 3/0 7 12.75 29.00 825.46
CRISIA 3/0 19 10.7 2.03 3/0 7 12.75 30.40 871.01
SQUID 4/0 7 12.1 1.52 2/0 7 11.35 30.00 895.66
ARCA 4/0 19 12.1 1.52 2/0 7 11.35 30.00 895.66
BUGULA 4/0 19 12.1 2.03 2/0 7 11.35 31.40 945.69
KINGERAB 4/0 7 12.1 1.52 4/0 7 14.31 32.10 1023.66
LEPAS 4/0 19 12.1 1.52 4/0 7 14.31 32.10 1023.66
CASSI 4/0 19 12.1 2.03 4/0 7 14.31 33.60 1073.69
ACSR
PALUDINA 6 1 4.11 1.14 6 6/1 5.03 12.80 159.34
VOLUTA 6 7 4.29 1.14 6 6/1 5.03 13.10 160.63
BOLMA 6 7 4.29 1.52 6 6/1 5.03 14.20 177.18
SCALLOP 4 1 5.19 1.14 6 6/1 5.03 14.40 209.87
STROMBUS 4 7 5.41 1.14 6 6/1 5.03 14.70 211.44
CARNEA 4 7 5.41 1.52 6 6/1 5.03 15.80 230.66
WHELK 4 1 5.19 1.14 4 6/1 6.35 15.30 241.62
PERIWINKLE 4 7 5.41 1.14 4 6/1 6.35 15.60 243.19
CALMA 4 7 5.41 1.52 4 6/1 6.35 16.70 262.41
COCKLE 2 7 6.81 1.14 4 6/1 6.35 17.70 314.52
GEBIA 2 7 6.81 1.52 4 6/1 6.35 18.80 337.07
CONCH 2 7 6.81 1.14 2 6/1 8.03 18.90 364.89
UCA 2 7 6.81 1.52 2 6/1 8.03 20.00 387.44
VERMETHS 1 7 7.59 1.52 1 6/1 8.99 21.80 475.44
ATYA 1 19 7.59 1.52 1 6/1 8.99 21.80 475.44
JANTHINA 1/0 7 8.53 1.52 2 6/1 8.03 22.40 491.47
RANELLA 1/0 19 8.53 1.52 2 6/1 8.03 22.40 491.47
NERITINA 1/0 7 8.53 1.52 1/0 6/1 10.11 23.90 571.83
CENIA 1/0 19 8.53 1.52 1/0 6/1 10.11 23.90 571.83
CAVOLINIA 2/0 7 9.55 1.52 1 6/1 8.99 24.60 618.72
CLIO 2/0 19 9.55 1.52 1 6/1 8.99 24.60 618.72
RUNCINA 2/0 7 9.55 1.52 2/0 6/1 11.35 26.30 719.62
TRITON 2/0 19 9.55 1.52 2/0 6/1 11.35 26.30 719.62
SANDDOLLAR 3/0 7 10.7 1.52 1/0 6/1 10.11 27.10 768.54
AEGA 3/0 19 10.7 1.52 1/0 6/1 10.11 27.10 768.54
PISA 3/0 19 10.7 2.03 1/0 6/1 10.11 28.50 814.09
CHERRYSTONE 3/0 7 10.7 1.52 3/0 6/1 12.75 29.00 895.48
MURSIA 3/0 19 10.7 1.52 3/0 6/1 12.75 29.00 895.48
MYSIS 3/0 19 10.7 2.03 3/0 6/1 12.75 30.40 941.03
CUTTLEFISH 4/0 7 12.1 1.52 2/0 6/1 11.35 30.00 950.70
CERAPUS 4/0 19 12.1 1.52 2/0 6/1 11.35 30.00 950.70
NEPATUS 4/0 19 12.1 2.03 2/0 6/1 11.35 31.40 1000.73
RAZOR 4/0 7 12.1 1.52 4/0 6/1 14.30 32.10 1111.42
ZUZARA 4/0 19 12.1 1.52 4/0 6/1 14.30 32.10 1111.42
ALIMA 4/0 19 12.1 2.03 4/0 6/1 14.30 33.60 1161.45
CALLISTA 266.8 19 13.6 2.03 3/0 6/1 12.75 34.60 1227.15
DOSINIA 266.8 19 13.6 2.03 267 18/1 15.47 36.60 1314.35
COWRY 336.4 19 15.3 2.03 4/0 6/1 14.30 38.20 1534.53
LIMPET 336.4 19 15.3 2.03 336 18/1 17.37 40.40 1644.65
