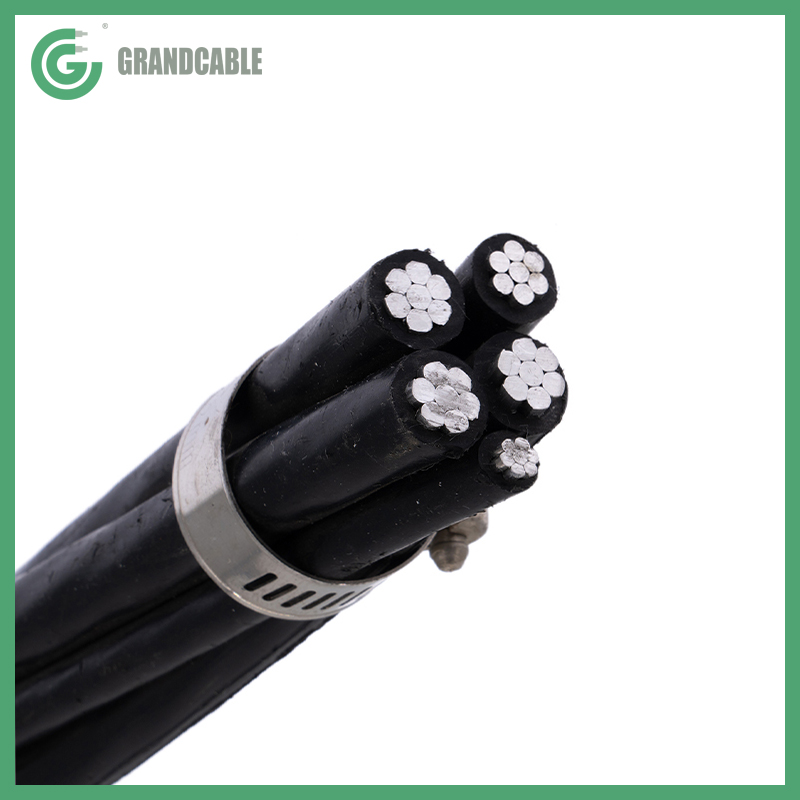

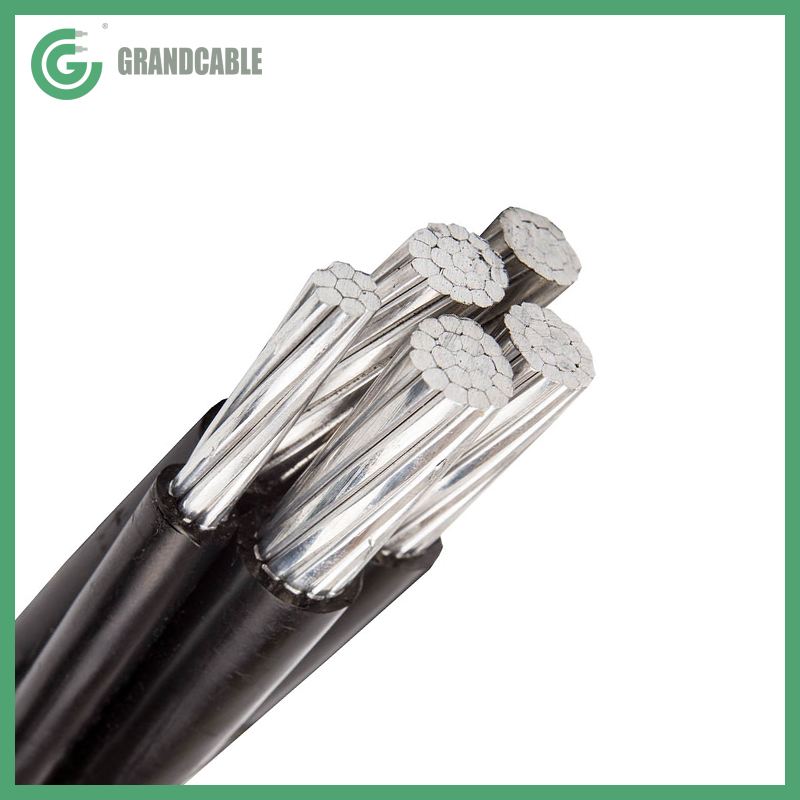

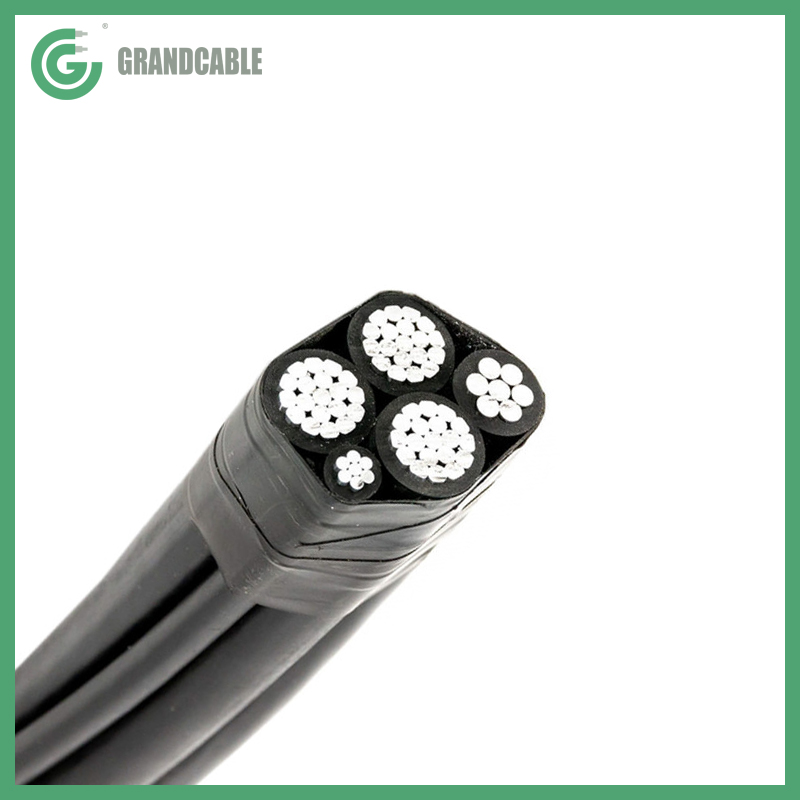

ABC Cable-0.6/1KV
Grand Cable
Application
Aerial Bundled Cable is designed for residential and rural areas for reducing the bushfire hazards. The XLPE covering contains a high level of carbon black for UV resistance. It is designed for where reliability, safety and low installation cost are required, but it is only for short spans due to increased weight.
Applicable Standard
It is designed as IEC ,BS ,ASTM and other standard or according to client's requirement.
Cable Construction
| Number of cores and cross-section | Nominal insulation thickness | Outer diameter (approx.) | Weight (approx.) | Metal number Al | Maximum resistance of conductor |
| mm2 | mm | mm | kg/km | kg/km | Ohm/km |
| 1x16 | 1.2 | 7 | 66 | 47 | 1.910 |
| 1x25 | 1.3 | 9 | 98 | 73 | 1.200 |
| 1x35 | 1.3 | 10 | 134 | 12 | 0.868 |
| 2x16 | 1.2 | 15 | 134 | 93 | 1.910 |
| 2x25 | 1.3 | 17 | 198 | 145 | 1.200 |
| 2x35 | 1.3 | 20 | 271 | 203 | 0.868 |
| 3x16 | 1.2 | 16 | 202 | 139 | 1.910 |
| 3x25 | 1.3 | 19 | 298 | 218 | 1.200 |
| 4x16 | 1.2 | 18 | 271 | 186 | 1.910 |
| 4x25 | 1.3 | 21 | 399 | 290 | 1.200 |
| 4x35 | 1.3 | 24 | 545 | 406 | 0.868 |
| 4x50 | 1.5 | 28 | 754 | 580 | 0.641 |
| 4x70 | 1.5 | 32 | 981 | 812 | 0.443 |
| 4x95 | 1.7 | 37 | 1334 | 1102 | 0.320 |
| 4x120 | 1.7 | 40 | 1633 | 1392 | 0.256 |
| 3x70+1x16 | 1.5/1.2 | 30 | 804 | 655 | 0.443 |
| 3x95+1x25 | 1.7/1.3 | 35 | 1101 | 900 | 0.320 |
| 3x70+2x16 | 1.5/1.2 | 30 | 874 | 702 | 0.443 |
| 3x95+2x16 | 1.7/1.2 | 35 | 1138 | 920 | 0.320 |
| 4x25+1x25 | 1.3 | 21 | 500 | 363 | 1.200 |
| 4x35+1x25 | 1.3 | 24 | 646 | 479 | 0.868 |
| 4x35+1x35 | 1.3 | 24 | 683 | 508 | 0.868 |
| 4x50+1x16 | 1.5/1.2 | 28 | 823 | 626 | 0.641 |
| 4x50+1x25 | 1.5/1.3 | 28 | 855 | 653 | 0.641 |
| 4x50+1x35 | 1.5/1.3 | 28 | 892 | 682 | 0.641 |
| 4x70+1x16 | 1.5/1.2 | 32 | 1051 | 858 | 0.443 |
| 4x70+1x25 | 1.5/1.3 | 32 | 1083 | 885 | 0.443 |
| 4x70+1x35 | 1.5/1.3 | 32 | 1119 | 914 | 0.443 |
| 4x95+1x16 | 1.7/1.2 | 37 | 1403 | 1148 | 0.320 |
| 4x95+1x25 | 1.7/1.3 | 37 | 1435 | 1175 | 0.320 |
| 4x95+1x35 | 1.7/1.3 | 37 | 1471 | 1204 | 0.320 |
| 4x120+1x16 | 1.7/1.2 | 40 | 1703 | 1438 | 0.253 |
| 4x120+1x25 | 1.7/1.3 | 40 | 1735 | 1465 | 0.253 |
| 4x120+1x35 | 1.7/1.3 | 40 | 1771 | 1494 | 0.253 |
| 4x35+2x25 | 1.3 | 24 | 748 | 551 | 0.868 |
| 4x50+2x25 | 1.5/1.3 | 28 | 957 | 725 | 0.641 |
| 4x50+2x35 | 1.5/1.3 | 28 | 1030 | 783 | 0.641 |
| 4x70+2x25 | 1.5/1.3 | 32 | 1185 | 957 | 0.443 |
| 4x70+2x35 | 1.5/1.3 | 32 | 1258 | 1017 | 0.443 |
| 4x95+2x25 | 1.7/1.3 | 37 | 1537 | 1247 | 0.320 |
| 4x95+2x35 | 1.7/1.3 | 37 | 1610 | 1305 | 0.320 |
