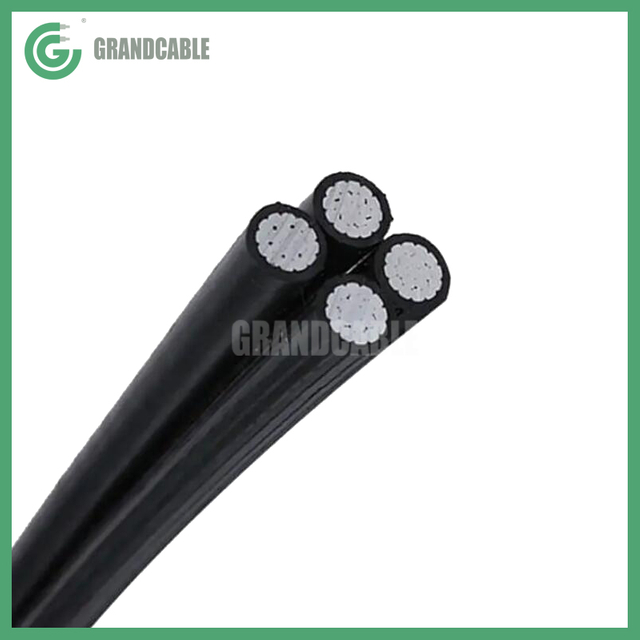

LV ABC Cable 3x95mm2+1x70mm2

Laid on cable ladder, tray, in duct in a thermal insulated wall, on a wall or spaced from wall, on the dry and closed cable trench in workshops, building; from source to machine or device, in duct in the ground…
  • ABC Cable-0.6/1KV
  • Grand Cable
Availability:

Application
Aerial Bundled Cable is designed for residential and rural areas for reducing the bushfire hazards. The XLPE covering contains a high level of carbon black for UV resistance. It is designed for where reliability, safety and low installation cost are required, but it is only for short spans due to increased weight.

Applicable Standard
BS 7870-5

HD 626 S1

EN 60228


Cable Construction

Conductor: Stranded compacted circular aluminium

Insulation: Weather-Resistant Cross-Linked Polyethylene


Characteristics

Rated voltage (Uo/U): 0.6/1kV

Max. conductor temperature in normal operation: 90°C

Max. conductor temperature in short-circuit for 5s max duration: 250°C

Min. bend radius: 12 x D (D: overall diameter of cable)


Construction Parameters

Number   of Cores x Nominal Cross Section Overal Diameter Weight Maximum Conductor Resistance Minimum Breaking Load Current Rating
No.×mm^2 mm Kg/Km Ω/Km KN A
1x16+1x25   RM 15.3 160 1.91 2.5 72
3x16+1x25   RM 19 290 1.2 4 107
3x25+1x25   RM 23.2 400 0.868 5.5 132
3x35+1x25   RM 25.6 500 0.641 8 165
3x50+1x35   RM 30 680 0.443 10.7 205
3x70+1x50   RM 34.9 920 0.32 13.7 240
3x95+1x70   RM 40.6 1270 0.253 18.6 290
3x120+1x70   RM 44.1 1510 0.206 23.2 334
3x150+1x95   RM 49.2 1870 0.164 28.7 389
3x185+1x120   RM 54.9 2340 0.125 37.2 467
3x25+1x25+1x16   RM 23.2 470 1.91 2.5 72
3x35+1x25+1x16   RM 25.6 560 1.2 4 107
3x50+1x35+1x16   RM 30 740 0.868 5.5 132
3x70+1x50+1x16   RM 34.9 980 0.641 8 165
3x95+1x70+1x16   RM 40.6 1330 0.443 10.7 205
3x120+1x70+1x16   RM 44.1 1580 0.32 13.7 240
3x150+1x95+1x16   RM 49.2 1940 0.206 23.2 334
3x185+1x120+1x16   RM 54.9 2410 1.91 2.5 72
